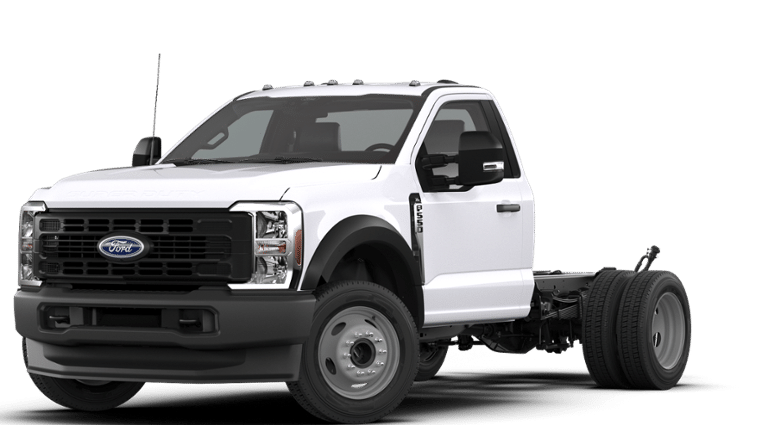

2026 Ford Chassis Cab
1
/
5

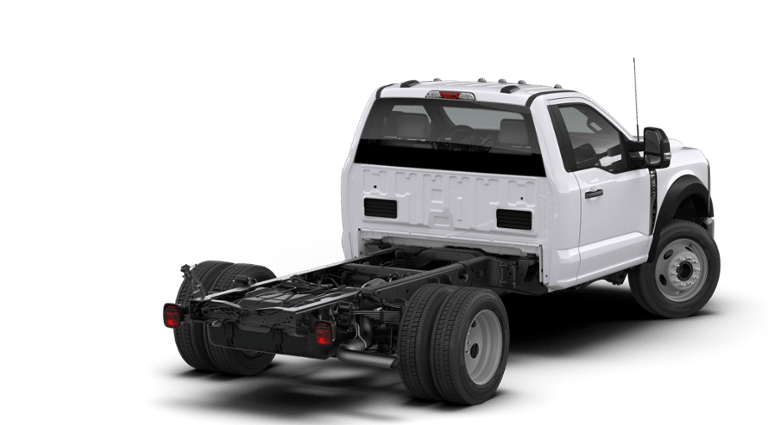

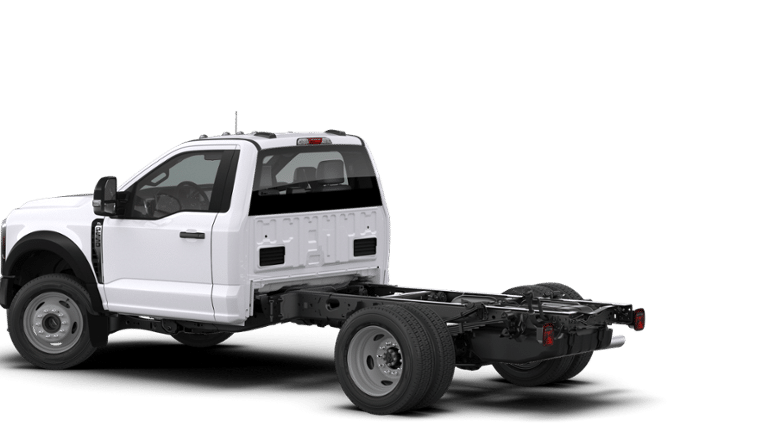

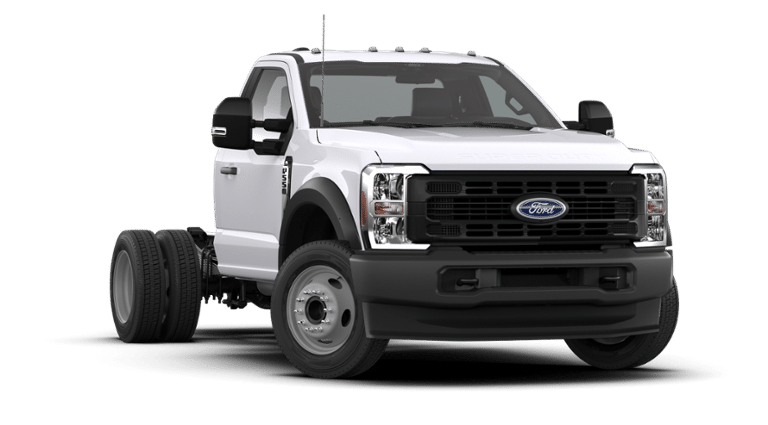

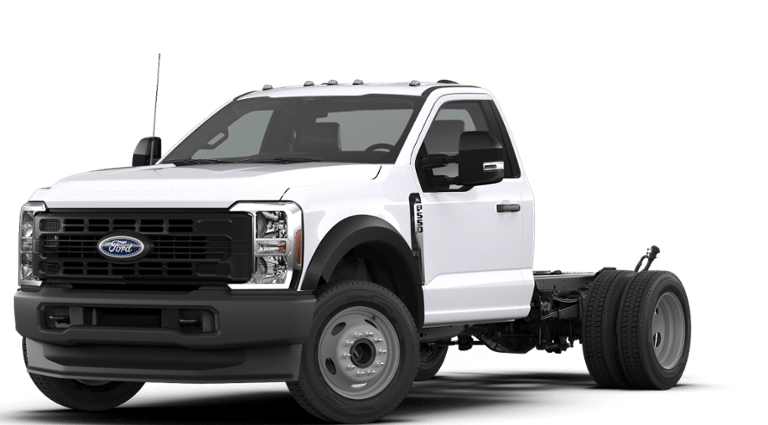

2026 Ford Chassis Cab F-550® XL
Dealer Ordered
-
$2,000 SAVINGS$76,345 SOUTHWEST PRICE
- MSRP: $78,345
-
- -$2,000
- SouthWest Price: $76,345
-
- Add. Available Ford Offers:
- $1,000
- $1,000
- $500
- $500
- $500
$225 dealer documentation fee and dealer-installed accessories (accessories vary and are included in this amount). See dealer for itemization.
-
$2,000 SAVINGS$76,345 SOUTHWEST PRICE
- MSRP: $78,345
-
- -$2,000
- SouthWest Price: $76,345
-
- Add. Available Ford Offers:
- $1,000
- $1,000
- $500
- $500
- $500
$225 dealer documentation fee and dealer-installed accessories (accessories vary and are included in this amount). See dealer for itemization.
Visit our Store
- Platinum Ford
-
85 Spur 557
Terrell, TX 75160
- Sales: 844-898-0192
- Service: 844-742-7085
- Parts: 844-490-3762
Vehicle Information
VIN:
1FDFF5HTXTDA27624
Model Code:
F5H
-
Body Style Regular Cab -
Exterior Color Oxford White
-
Interior Color Medium Dark Slate
-
Engine 6.7L 4 Valve OHV Power Stroke® V8 Turbo Diesel B20 Engine with Manual Push-button Engine-Exhaust Braking -
Transmission Ten-Speed Automatic Transmission with Selectable Drive Modes -
Fuel Type Diesel
Eligible Benefits
All Features
- Headlamps - Autolamp (On/Off)
- Headlamps -Wiper Activated
- Mirrors - Htd, Pwr Glass/ Manual-Fold/Turn Signals
- Roof Clearance Lights
- Tow Hooks
- Trailer Sway Control
- Trailer Tow Wire Harness
- Wipers- Intermittent
- 4-Wheel Antilock Brake Sys
- 5G Modem
- Ford App
- Hill Start Assist
- Jewel Effect Headlamps
- Remote Keyless Entry
- Stabilizer Bar, Front/Rear
- Sync4 W/8" Screen
- 1Touch Dwn Dr/Pass Window
- 4.2" Cluster Display
- Air Cond, Manual Front
- Black Vinyl Floor Covering
- Outside Temp Display
- Particulate Air Filter
- Power Locks And Windows
- Steering:Tilt/Telescope, Cruise & Audio Controls
- Upfitter Switches
- Advancetrac With Rsc
- Airbags - Safety Canopy
- Belt-Minder Chime
- Driver/Passenger Air Bags
- Secure Pkg 1 Yr Included
- Securilock Anti-Theft Sys
- Sos Post-Crash Alert Sys
- Tire Pressure Monit Sys
660A
Payload Plus Upgrade Package 2
Heavy-Service Front Suspension Package
Ford Connectivity Package (1-year included)
XL Chrome Package
Power Equipment Group
Ford Security Package (1-year Included with activation)
Trailer Tow Package – High Capacity
ORDER CODE 660A
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 190
- Base Curb Weight (lbs): 7582
- Base Curb Weight (lbs): 6858
- Gross Axle Wt Rating - Front (lbs): 6000
- Gross Axle Wt Rating - Front (lbs): 5600
- Gross Axle Wt Rating - Front (lbs): 6000
- Gross Axle Wt Rating - Front (lbs): 5200
- Gross Axle Wt Rating - Front (lbs): 4800
- Gross Axle Wt Rating - Rear (lbs): 14706
- Gross Axle Wt Rating - Rear (lbs): 13660
- Curb Weight - Front (lbs): 3880
- Curb Weight - Rear (lbs): 2978
- Gross Vehicle Weight Rating Cap (lbs): 19550
- Gross Vehicle Weight Rating Cap (lbs): 18000
- Gross Combined Wt Rating (lbs): 40000
- Gross Combined Wt Rating (lbs): 30000
- Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs): 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
- Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21700
- Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5425
- Maximum Trailering Capacity (lbs): 18500
- Suspension Type - Front: Other
- Suspension Type - Rear: Leaf
- Spring Capacity - Front (lbs): 6000
- Spring Capacity - Front (lbs): 5600
- Spring Capacity - Front (lbs): 6000
- Spring Capacity - Front (lbs): 5200
- Spring Capacity - Front (lbs): 4800
- Spring Capacity - Rear (lbs): 14706
- Spring Capacity - Rear (lbs): 15000
- Spring Capacity - Rear (lbs): 13660
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front (lbs): 7000
- Axle Capacity - Rear (lbs): 14706
- Axle Capacity - Rear (lbs): 13660
- Axle Ratio (:1) - Front: 4.88
- Axle Ratio (:1) - Rear: 4.88
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 15.4
- Rear Brake Rotor Diam x Thickness (in): 15.8
- Front Tire Order Code: TGJ
- Rear Tire Order Code: TGJ
- Front Tire Size: LT225/70SR19.5
- Rear Tire Size: LT225/70SR19.5
- Front Tire Capacity (lbs): 7500
- Rear Tire Capacity (lbs): 15000
- Revolutions/Mile @ 45 mph - Front: 647
- Revolutions/Mile @ 45 mph - Rear: 647
- Front Wheel Size (in): 19.5 X 6
- Rear Wheel Size (in): 19.5 X 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb (ft): 42.5
- Fuel Tank Capacity, Approx (gal): 40
- Wheelbase (in): 145
- Length, Overall (in): 230.7
- Width, Max w/o mirrors (in): 80
- Height, Overall (in): 82.6
- Overhang, Front (in): 38.3
- Overhang, Rear w/o bumper (in): 47.2
- Cab to Axle (in): 60
- Cab to End of Frame (in): 107.2
- Frame Width, Rear (in): 34.2
- Ground Clearance, Front (in): 8.5
- Ground Clearance, Rear (in): 8.5
- Passenger Capacity: 3
- Front Head Room (in): 40.8
- Front Leg Room (in): 43.9
- Front Shoulder Room (in): 66.7
- Front Hip Room (in): 62.5
- Vehicle Name: Ford Super Duty F-550 DRW
- Body Style: SD Regular Cab
- Body Code: H
Warranty
- 3Yr/36,000 Bumper / Bumper
- 5Yr/60,000 Powertrain
- 5Yr/60,000 Roadside Assist
- 5Yr/100,000 Diesel Engine
